Home Spray Machines Prima EVO – Single Arm Oscillating Spray Machine
Cefla MITO - Single or Double Arm Oscillating Spray Machine
Cefla MITO - Single or Double Arm Oscillating Spray Machine
Back to products
Cefla EASY -  Double Arm Oscillating Spray Machine
Cefla EASY - Double Arm Oscillating Spray Machine
Cefla

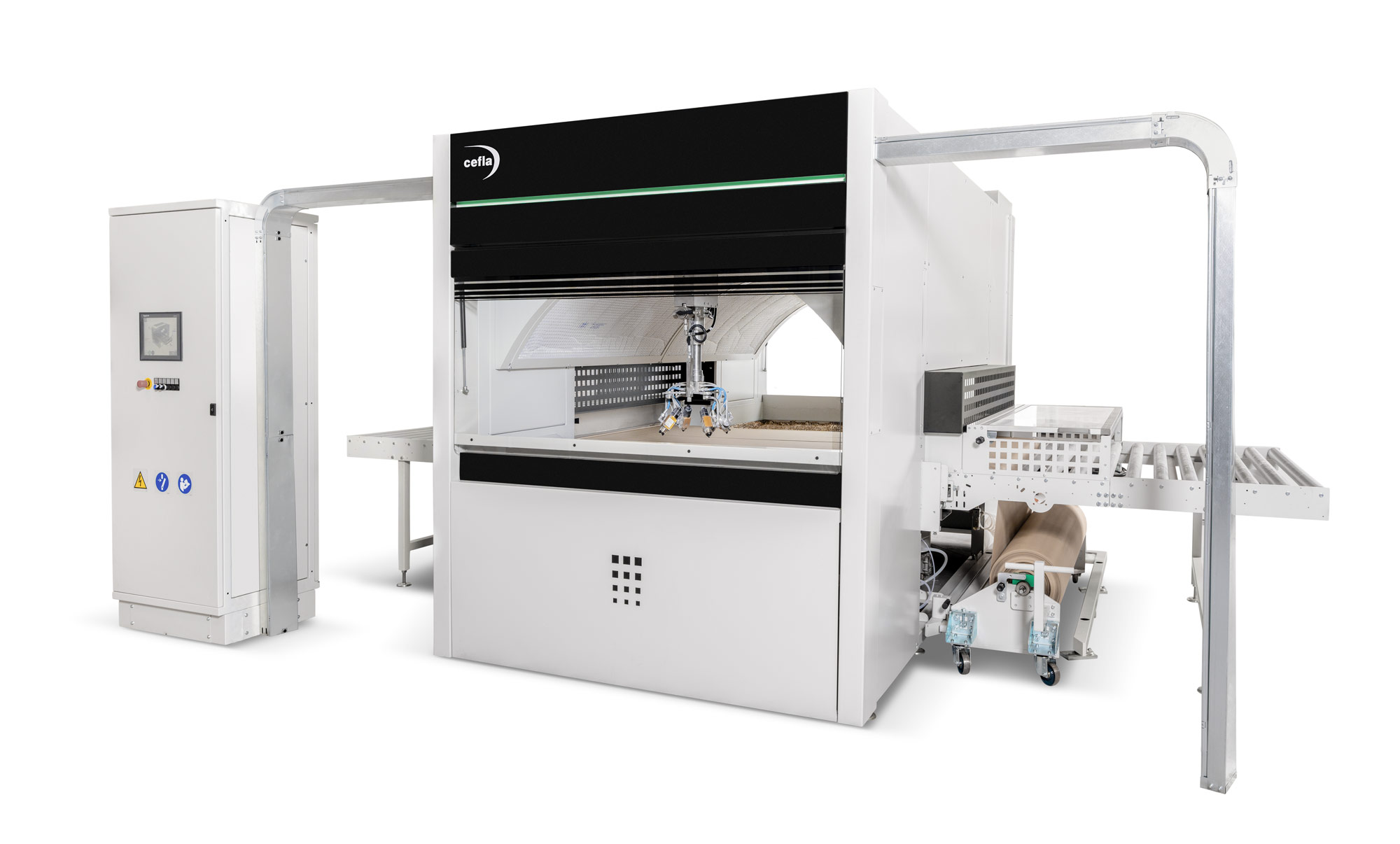

Prima EVO – Single Arm Oscillating Spray Machine

PRIMA is a one arm oscillating spray machine. Perfect for business upgrading from manual to automatic spraying.

Category: Spray Machines
Share:
Close
Product categories
  • Drying Systems and Spray Booths 6
  • Profile Wrapping 3
  • Robotics Spraying Machines 1
  • Roller Coating and UV Curing 3
  • Spray Machines 10
  • Wandres Micro Cleaning 10
  • Description
  • Additional information
  • About Cefla
Description
Description
Features
Advantages
Video
Request Information

Description

One or two-arm oscillating spray coater. Perfect for upgrading from manual to automatic spray coating.

Spraying Arms

The new-concept central spraying arm gives excellent application performances combined with paint saving. Particularly easy manual spray gun opening access to simplify maintenance. Prima is also ideal for glass finishing. In this configuration, the machine is equipped with a special spraying arm and the most flexible system for spraying on glass, since it is able to apply any type of paint. Prima EVO can be equipped with one central single arm with up to 4 guns, or with two arms with up to 8 guns.

Overspray Filtration

Suction is through two-stage dry filters, an economical, efficient system. The large filtering surface area guarantees better air distribution, which translates into uniform finishing and a cleaner machine.

Conveyor System

The paper conveyor system, with automatic pay-off and take-up system, features a vacuum unit which provides all the benefits of a continuous conveyor: immaculate panel underside cleaning and uniform application on edges and face of workpieces. Paper rollers are located at the entry and exit points to aid fast changing.

Control panel

Electric control panel with PLC and machine control software, managed by a wide, colour touchscreen control panel.

Configurations

SPRAYING ARMS AVAILABILITY: 1 arm for paint application; 2 arms for paint application, 1 arm for application to glass; 1 arm for glue application.

Features

  • Extreme user-friendliness
  • Can be used as a stand-alone machine with one or two operators for loading/unloading
  • Perfect for business upgrading from manual to automatic
  • Low costs Fast maintenance

Materials:

  • Wood
  • Plastics
  • Metal
  • Glass
  • Composite materials

Advantages

PRIMA SINGLE ARM

The new-concept central spraying arm gives excellent application performance combined with paint saving benefits.

Prima reading bar

The infeed reading bar precisely scans the shape and size of incoming pieces to optimise spraying and avoid wasting paint.

PRIMA PAPER BELT

The paper conveyor system features a vacuum unit which provides all the benefits of a continuous conveyor.

Video

Additional information
Brand

Cefla

About Cefla
Cefla

Surface Enhancement Technology Leader

Cefla Finishing is a world leader in the design and production of solutions for painting, decoration and digital printing of countless materials and types of substrate. We invent, innovate, integrate. From the simplest machine to the most complex and complete finishing line, providing a comprehensive range of equipment to satisfy all requirements in terms of productivity and production efficiency.

Experience spanning 70 years has placed us at the forefront of the industry, acquiring expertise in sectors going from wood and wood derivatives to glass, plastic, fibre cement, composite materials and metal. Through process innovation, advanced technologies and specialist software tools, we provide industries with an opportunity to evolve.

Today we are able to build our knowledge into existing situations, creating business partnerships and ensuring integrated solutions which we will design according to client requirements and objectives.

We have a wealth of patented technologies and are pioneering the digitalisation process to embrace the advantages of Industry 4.0. Our customers benefit from a number of unique opportunities that will propel their business into the future, leveraging the latest innovations and the most extensive knowledge in the finishing industry.
